MILITARY CONNECTORS

Light-duty connectors and heavy-duty connectors are two ways that the Navy classifies fiber optic connectors. Light-duty connector shipboard applications include locations that protect the connectors from the environment, such as in a junction box or equipment enclosure. Heavy-duty applications require a very rugged, stand-alone, sealed connector. A heavy-duty connector must also withstand pulls and tugs on the fiber cable without disrupting system operation. Light-duty connectors can be of the ferrule, biconical, or expanded-beam designs. Ferrule-type ST® connectors are becoming the commercial connector of choice for local area network (LAN) and data transfer links and are the standard connector for Navy light duty applications. This connector is described in specification sheets 16, 17, and 18 of MIL-C-83522. Figure 4-21 shows the ST® type of light-duty connector.

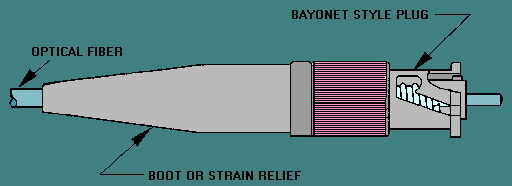

Figure 4-21. - ST® light-duty connector.

Figure 4-22 shows one type of heavy-duty connector designed for use in harsh Navy environments. This connector is described by the military specification MIL-C-28876. This connector comes in various sizes capable of terminating 2, 4, 6, or 8 fibers. Each fiber termination, called a terminus, is of the cylindrical ferrule type. Two slightly different termini are used to form a connection; a pin terminus and a socket terminus. The pin terminus consists of a terminus body, which holds the terminus within the connector shell and a ceramic ferrule. The socket terminus consists of a terminus body, a ceramic ferrule, and an alignment sleeve, which attaches to the ceramic ferrule. Fiber alignment occurs when the pin terminus slides into the alignment sleeve of the socket terminus. The termini are held within an insert in the connector shell. When the connector halves are mated, the connector inserts align the mating termini, which then align the mating fibers. The connector shell and backshell protect the termini from the surrounding environment and provide strain relief for the multifiber cable.

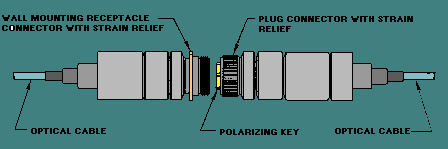

Figure 4-22. - MIL-C-28876 heavy-duty connector.

Q.30 The Navy classifies fiber optic connectors in what two ways?
