 Exterior Trim Before the installation of the roof sheathing is completed, the exterior finish at and just below the eaves of the roof, called CORNICE, can be constructed. The practical purpose of a cornice is to seal the joint between wall and roof against weather penetration. Purely ornamental parts of a cornice are called trim. Figure 6-44 shows a simple type of cornice, used on a roof with no rafter overhang. A roof with a rafter overhang may have the "open" cornice shown in

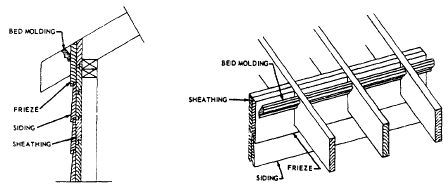

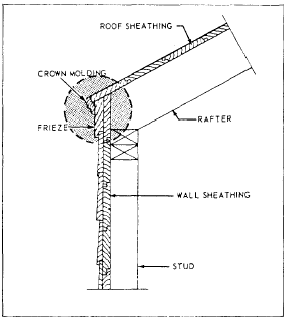

Figure 6-44.-Simple cornice.

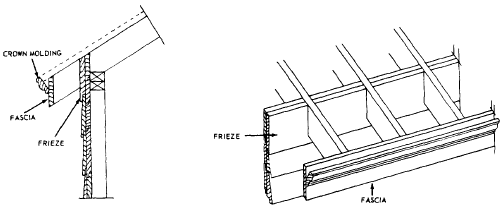

Figure 6-45.-Open cornice without a fascia board.

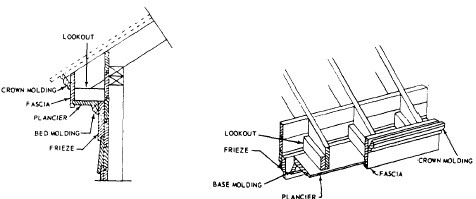

Figure 6-46.-Open cornice with a fascia board.
Figure 6-47.-Closed or boxed cornice. figures 6-45 and 6-46, or the "closed" or "boxed cornice" shown in figure 6-47. A short extension of a cornice along the gable-end wall of a gable-roof structure is called cornice return (fig. 6-48). Finish along the rakes of a gable roof is called the gable cornice trim (fig. 6-49). The rafter-end edges of a roof are called EAVES. A hip roof has eaves all the way around. A gable roof has only two eaves; the gable-end or end-wall edges of a gable roof are called RAKES.This information is now available on CD in Adobe PDF Printable Format |
|
