ABM 240 SYSTEM

There is another type of K-span building, actually referred to as a Super Span by the manufacturer, the ABM 240. Actual construction of the ABM 240 is the same as the ABM 120 (K-span). It can use heavier coil stock and is a larger version. Figure 8-25 is given to show the differences between the two.

Keep in mind that the information provided in this section on the K-span building is basic. During the actual construction of this building, you must consult the manufacturer's complete set of manuals.

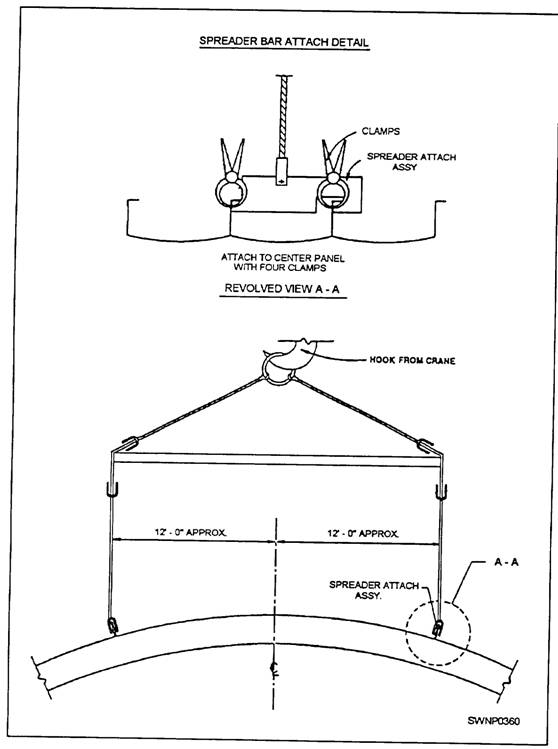

Figure 8-16.-Spreader bar attachment.

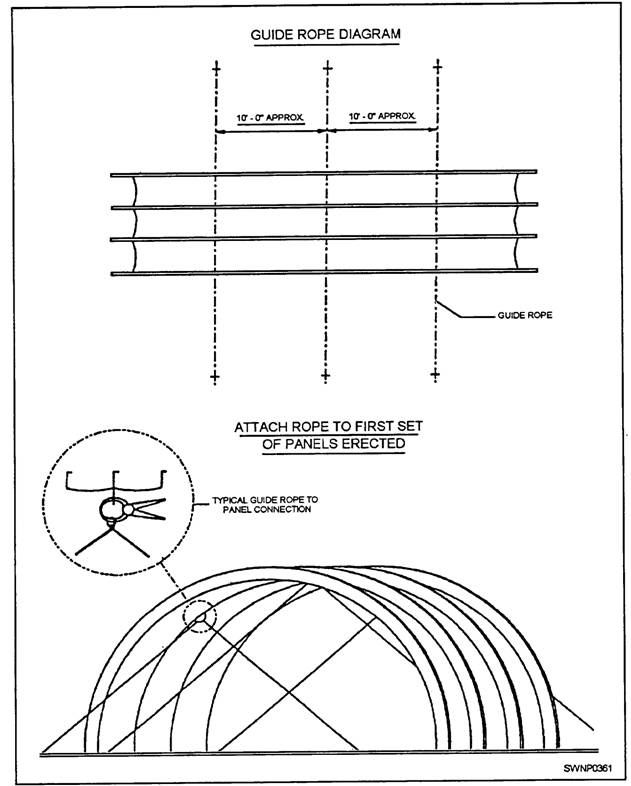

Figure 8-17.-Guide rope diagram.

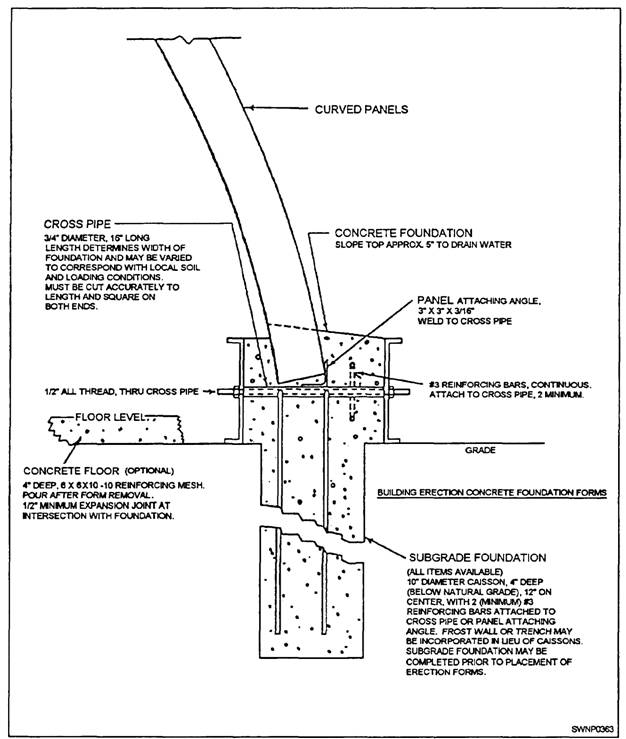

Figure 8-19.-Concrete foundation.

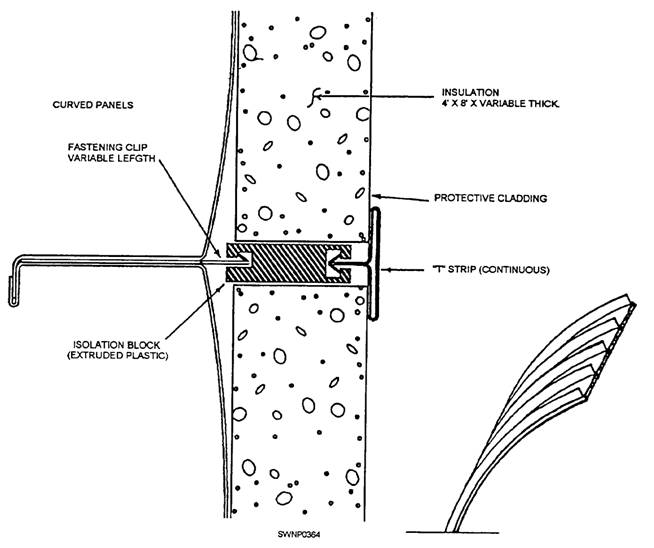

Figure 8-20.-Insulation.

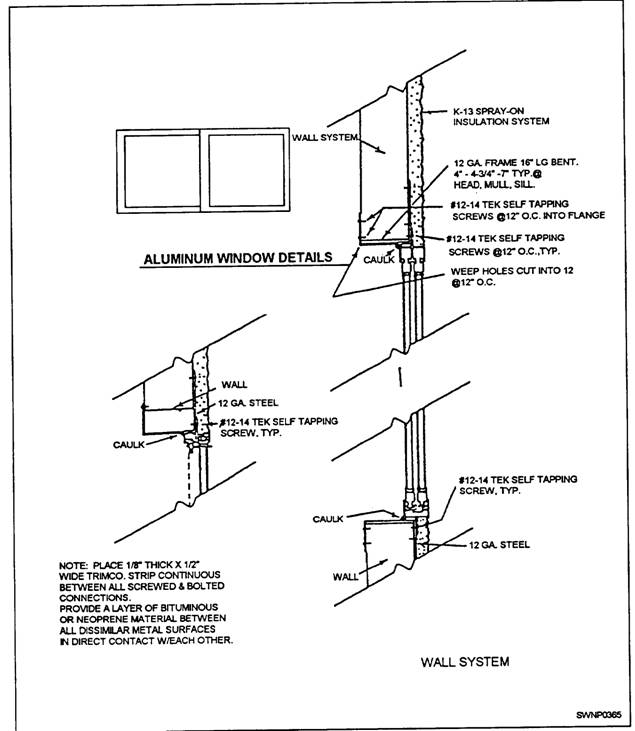

Figure 8-21.-Aluminum window installation.

Figure 8-22.-Aluminum door installation.

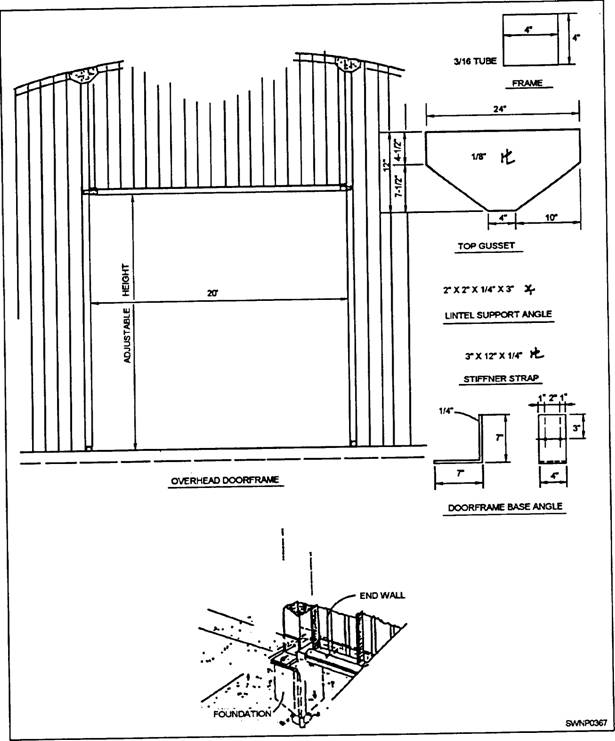

Figure 8-23.-Overhead doorframe.

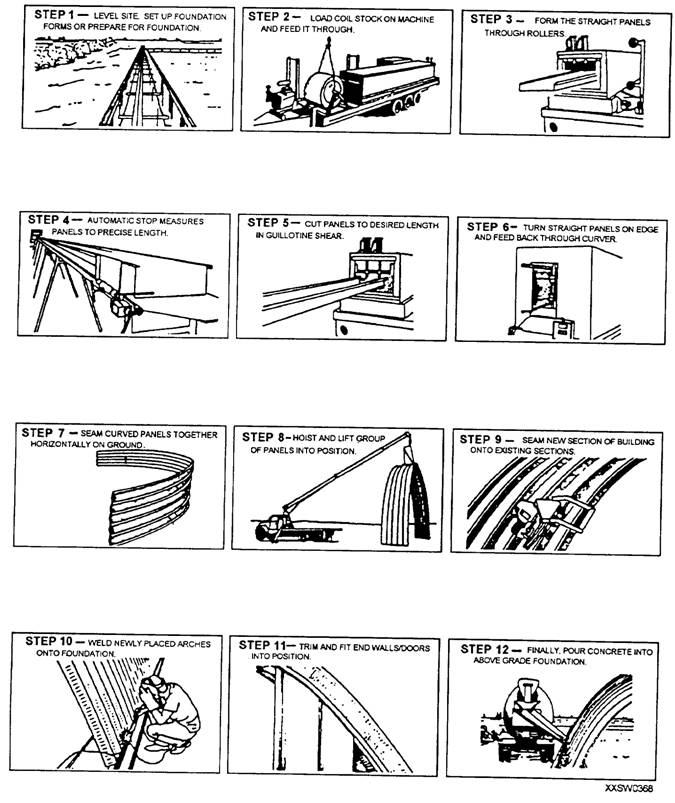

Figure 8-24.-Steps in K-span construction.

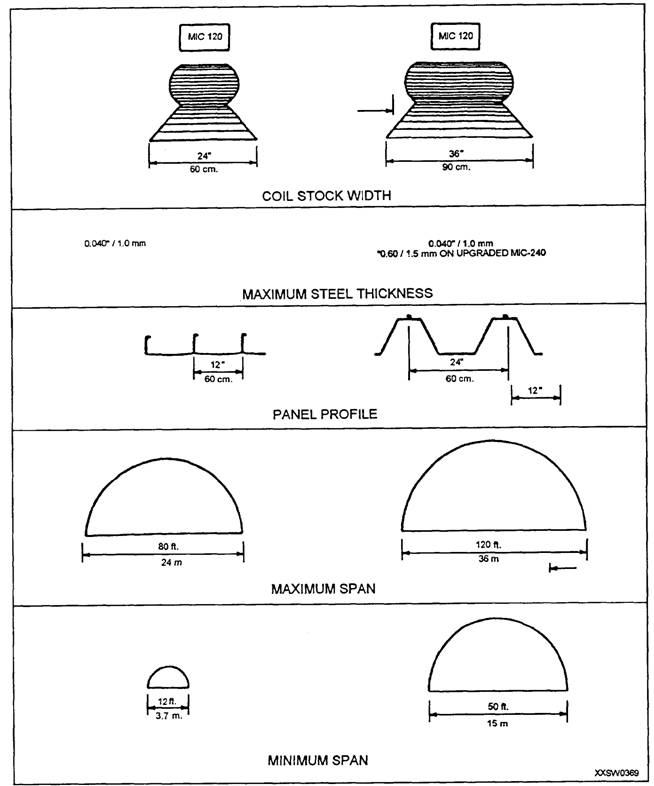

Figure 8-25.-ABM System 120 and 240 comparison chart.
