Sizes of Sheaves

The diameter of a sheave should never be less than 20 times the diameter of the wire rope. An exception is 6 x 37 wire for which a smaller sheave can be used, because this wire rope is more flexible.

The chart shown in table 13-1 can be used to determine the minimum sheave diameter for wire rope of various diameters and construction.

Reverse Bends

Whenever possible, drums, sheaves, and blocks used with wire rope should be placed to avoid reverse or S-shaped bends. Reverse bends cause the individual wires or strands to shift too much and increase wear and fatigue. For a reverse bend, the drums and blocks affecting the reversal should be of a larger diameter than

Table 13-1.-Suggested Minimum Tread Diameter of Sheaves and Drums

ordinarily used and should be spaced as far apart as possible.

Seizing and Cutting

The makers of wire rope are careful to lay each wire in the strand and each strand in the rope under uniform tension. If the ends of the rope are not secured properly, the original balance of tension will be disturbed and maximum service cannot be obtained because some strands can carry a greater portion of the load than others. Before cutting steel wire rope, place seizing on each side of the point where the rope is to be cut (fig. 13-18).

A rule of thumb for determining the size, number, and distance between seizing is as follows:

1. The number of seizing to be applied equals approximately three times the diameter of the rope.

Example: 3 x 3/4-inch-diameter rope = 2 1/4 inches. Round up to the next higher whole number and use three seizing.

2. The width of each seizing should be 1 to 1 1/2 times as long as the diameter of the rope.

Example: 1 x 3/4-inch-diameter rope = 3/4 inch. Use a 1-inch width of seizing.

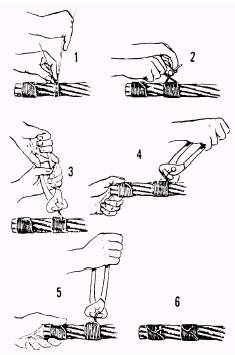

Figure 13-18.-Seizing wire rope.

3. The seizing should be spaced a distance equal to twice the diameter of the wire rope.

Example: 2 x 3/4-inch-diameter rope = 1 1/2 inches. Space the seizing 2 inches apart.

A common method used to make a temporary wire rope seizing is as follows:

Wind on the seizing wire uniformly, using tension on the wire. After taking the required number of turns, as shown in step 1, twist the ends of the wires counterclockwise by hand, so the twisted portion of the wires is near the middle of the seizing, as shown in step 2. Grasp the ends with end-cutting nippers and twist up slack, as shown in step 3. Do not try to tighten the seizing by twisting. Draw up on the seizing, as shown in step 4. Again twist up the slack, using nippers, as shown in step 5. Repeat steps 4 and 5 if necessary. Cut ends and pound them down on the rope, as shown in step 6. If the seizing is to be permanent or if the rope is 1 5/8 inches or more in diameter, use a serving bar, or iron, to increase tension on the seizing wire when putting on the turns.

Wire rope can be cut successfully by a number of methods. One effective and simple method is to use a hydraulic type of wire rope cutter, as shown in figure 13-19. Remember that all wire should be seized before it is cut. For best results in using this method, place the rope in the cutter so the blade comes between the two central seizings. With the release valve closed, jack the blade against the rope at the location of the cut and continue to operate the cutter until the wire rope is cut.
