Attach push-pull spring scale to the secondary ejection control handle and pull upward on the scale. A force of 25 2 pounds is required to unseat the handle from the stowed detent position.

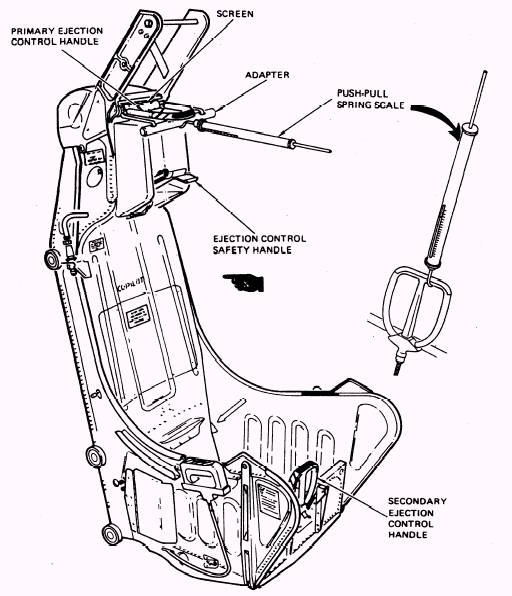

Figure 6-16.- Ejection control pull test.

Verify that the handle will extend not less than 0.75 inch from the handle stowed position. Remove the spring scale and restow the handle in the holder.
