Core

The wire rope core supports the strands laid around it. The three types of wire rope cores arc fiber, wire strand, and independent wire rope (fig. 13-3).

Figure 13-3.-Core construction.

. A fiber core may be a hard fiber, such as manila, hemp, plastic, paper, or sisal. The fiber core offers the advantage of increased flexibility. It also serves as a cushion to reduce the effects of sudden strain and acts as an oil reservoir to lubricate the wire and strands (to reduce friction). Wire rope with a fiber core is used when flexibility of (he rope is important.

. A wire strand core resists more heat than a fiber core and also adds about 15 percent to the strength of the rope; however, the wire strand core makes the wire rope less flexible than a fiber core.

. An independent wire rope core is a separate wire rope over which the main strands of the rope are laid. This core strengthens the rope, provides support against crushing, and supplies maximum resistance to heat.

GRADES OF WIRE ROPE

The three primary grades of wire rope are mild plow steel, plow steel, and improved plow steel.

Mild Plow Steel Wire Rope

Mild plow steel wire rope is tough and pliable. It can stand repeated strain and stress and has a tensile strength (resistance to lengthwise stress) of from 200,000 to 220,000 pounds per square inch (psi). These characteristics make it desirable for cable tool drilling and other purposes where abrasion is encountered.

Plow Steel Wire Rope

Plow steel wire rope is unusually tough and strong. This steel has a tensile strength of 220,000 to 240,000 psi. Plow steel wire rope is suitable for hauling, hoisting, and logging.

Improved Plow Steel Wire Rope

Improved plow steel wire rope is one of the best grades of rope available and is the most common rope used in the NCF. This type of rope is stronger, tougher, and more resistant to wear than either mild plow steel or plow steel. Each square inch of improved plow steel can stand a strain of 240,000 to 260,000 pounds. This makes it especially useful for heavy-duty service, such as on cranes with excavating and weight-handling attachments.

LAYS OF WIRE ROPE

The term lay refers to the direction of the twist of the wires in a strand and to the direction that the strands are laid in the rope. In some instances, both the wires in the strand and the strands in the rope are laid in the same direction; and in other instances, the wires are laid in one direction and the strands are laid in the opposite direction, depending on the intended use of the rope. Most manufacturers specify the types and lays of wire rope to be used on their piece of equipment. Be sure and consult the operator's manual for proper application.

Five different lays of wire rope are shown in figure 13-4.

The five types of lays used in wire rope are as follows: . Right Regular Lay: In right regular lay rope, the wires in the strands are laid to the left, while the strands are laid to the right to form the wire rope.

. Left Regular Lay: In left regular lay rope, the wires in the strands are laid to the right, while the strands are laid to the left to form the wire rope. In this lay, each step of fabrication is exactly opposite from the right regular lay.

. Right Lang Lay: In right lang lay rope, the wires in the strands and the strands in the rope are laid in the same direction; in this instance, the lay is to the right.

. Left Lang Lay: In left lang lay rope, the wires in the strands and the strands in the rope are also laid in the same direction; in this instance, the lay is to the left (rather than to the right as in the right lang lay).

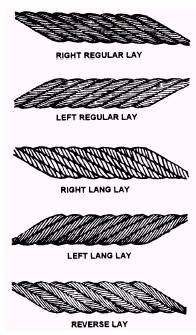

Figure 13-4.-Lays of wire rope.

. Reverse Lay: In reverse lay rope, the wires in one strand are laid to the right, the wires in the nearby strand are laid to the left, the wires in the next strand are to the right, and so forth, with alternate directions from one strand to the other. Then all strands are laid to the right.
