Removing the Bobbin

To remove the bobbin, draw out the righthand slide plate in the bed of the machine. Insert the fingernail of the forefinger under the latch; raise the latch and lift the bobbin out. (See figure 9-30).

Figure 9-30.-Bobbin case threaded.

Winding the Bobbin

To wind the bobbin and adjust the bobbin winder, follow the procedure given for the 31-15 sewing machine.

Replacing the Bobbin and Threading the Bobbin Case

Hold the bobbin between the thumb and forefinger of your right hand with the thread drawn out on the bottom from left to right. Place the bobbin on the center stud of the bobbin case; then push down the latch.

Draw the thread into the slot (1), and under the back of the projection (2). Leave a loose end of thread about 2 inches long above the slide. When closing the slide plate, leave just enough space for the thread to pass through when it is first picked up by the needle.

Regulating the Tension

The tension on the needle thread is regulated by the tension thumb nut located at the front of the tension disks on the front of the machine. To increase the tension, turn this thumb nut clockwise. To decrease the tension, turn the thumb nut counterclockwise.

The tension on the bottom (bobbin) thread is regulated by means of the small screw nearest the center of the tension spring in the outside of the bobbin case (l), as shown in figure 9-30. To increase the tension, turn this screw clockwise. To decrease the tension, turn the screw counterclockwise.

Regulating the Length of Stitch

The number of stitches per inch is stamped on the stitch indicating disk, which can be seen through the hole on the uprise.

To change the length of stitch, press down the feed regulating stud (plunger), located in the bed of the machine. At the same time, turn the balance wheel slowly until the plunger enters a notch in the adjustable feed eccentric disk. Continue to hold the plunger and turn the balance wheel forward or backward until the number of stitches per inch desired can be seen through the hole in the front of the uprise. Disengage the plunger by releasing it.

Regulating the Pressure on the Material

The pressure on the material is regulated by the presser bar regulating screw at the back of the sewing machine. The screw acts on a flat spring. To increase the pressure, turn this screw downward. To decrease the pressure, turn this screw upward. The pressure should be only heavy enough to enable the feed to move evenly along whatever thickness of material you are using.

Preparing for Sewing

With the left hand, hold the end of the needle (machine) thread, leaving it slack from the hand to the needle. Turn the balance wheel over toward you until the needle moves down and up again to its highest position. If the sewing machine is properly timed, this will bring the bobbin thread up with the machine thread through the hole in the feed dog. Lay the threads back under the presser foot and close the slide.

Place the material under the presser foot. Lower the presser foot either by hand or by the knee lift, and begin to sew. Start the sewing by turning the balance wheel over toward you as you depress the treadle.

Removing the Work

After the machine has stopped, move the thread take-up lever to its highest position. Raise

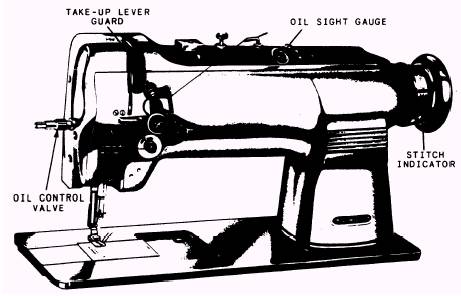

Figure 9-31.-The 211 W 151 sewing machine.

the presser foot, draw the work back, and cut the threads close to the material. Lay the ends of the threads back under the presser foot.
