SV-2 SURVIVAL VEST

The SV-2B survival vest provides maximum useful storage for survival equipment, consistent with minimal bulk and weight. In addition, the survival vest provides for integration of a life preserver, anti-g coveralls, and the chest-mounted oxygen regulator. It does not interfere with use of either the regular or integrated-type parachute harness. The SV-2B vest is the latest authorized configuration for this series of survival vest.

Configuration

The SV-2B survival vest is constructed basically of nylon cloth. An adjustable harness, leg straps, and an entrance slide fastener provide a means of fitting and securing the vest to the aircrew member. Elastic straps on the rear allow greater comfort and mobility of the wearer. Pockets are provided for stowage of survival items (fig. 4-4). When required, the chest-mounted oxygen regulator is located inside a pocket secured to the vest by means of hook and pile tape.

Fittings

The basic SV-2B survival vest is designed to fit chest sizes from 40 to 48 inches. By changing the elastic straps on the rear, the vest may be adapted to a wider size range. To fit an SV-2B properly, have the aircrew member wear all his normal flight gear, including the MA-2 torso harness, if used. Put the SV-2B vest on as if it were a jacket. Pass the leg straps through the crotch and attach the snap hooks. Adjust the leg and shoulder straps so that they are snug and the bottom of the vest is just above the hips. Examine the SV-2B for proper fit. If it is too loose, the elastic straps must be shortened. If it is too tight, you must lengthen the elastic straps. The procedures for this adjustment, as well as maintenance, calendar inspections, and cleaning, are covered in-depth in the Aircrew Personal Protective Equipment Manual, NAVAIR 13-1-6.7.

ANTIEXPOSURE ASSEMBLIES

Antiexposure assemblies are composed of several garments that protect the aircrew member in the event of immersion. Constant wear assemblies provide additional protection from cold weather. The constant wear assemblies consist of a waterproof outer garment worn over a ventilation liner and/or cold weather underwear.

The quick-donning antiexposure suit is carried in the aircraft, and donned only in case of emergency. It consists of a waterproof outer garment equipped with permanently attached boots and wrist and neck seals. An inflatable hood and antiexposure mittens are stowed in the pockets. In case of emergency, the assembly is donned over the regular flight clothing.

Either continuous-wear or quick-donning antiexposure suits, as appropriate, are provided for flight personnel and passengers when there is a significant risk of crashing in the water, and when any of the following conditions prevail:

1. The water temperature is 50F or below.

2. The outside air temperature (OAT) is 32F (wind chill factor corrected) or below.

If the water temperature is between 50 and 60F, the commanding officer of the unit concerned considers the following search and rescue (SAR) factors:

1. The maximum probable rescue time. This should be a function of mission distance, SAR equipment, and SAR location.

2. The lowest temperatures that will occur in the mission area during the time period of the flight.

3. Then by using table 4-1, he determines whether antiexposure suits are required.

Figure 4-4.-SV-2B survival vest.

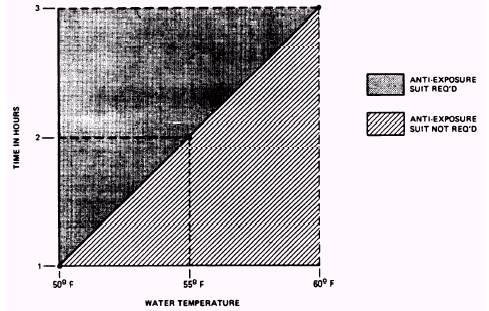

Table 4-1.-Antiexposure Suit Requirements

4. When water temperature is below 60F and antiexposure suits are not required, the flight equipment includes antiexposure, hightemperature resistant undergarments. Wearing double layers of these undergarments can significantly improve antiexposure protection.
