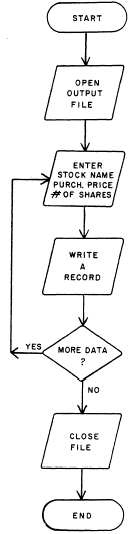

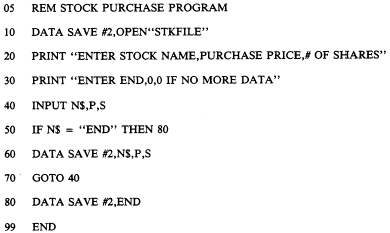

The following flowcharts and programs present possible solutions to the exercises.

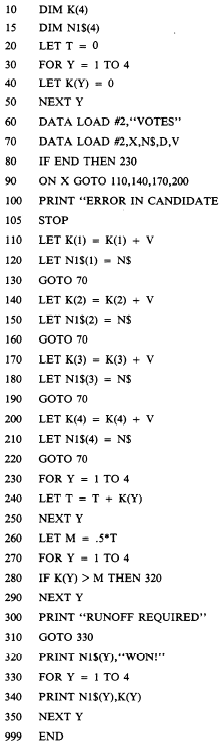

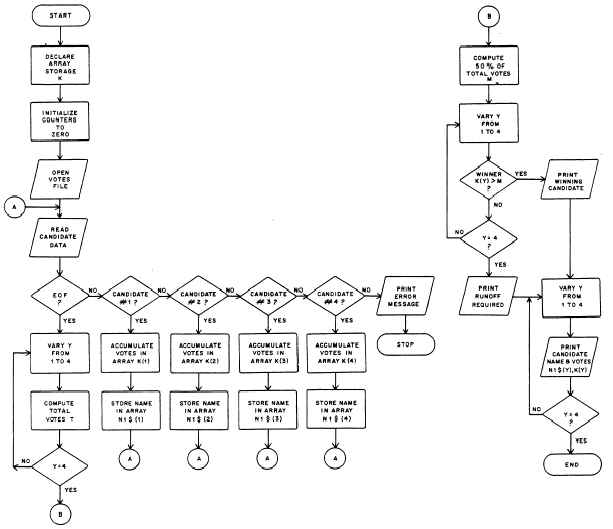

2. Election Results Flowchart and Program

You may have noticed that the data field for candidate number contains a 1, 2, 3, 4, and that this code could be used as a subscript to reference the correct locations in the arrays. To modify the program to take advantage of this, you could replace statements 90 through 220 with the following statements:

When the value of candidate number is 1, the number of votes cast for candidate 1 would be added to K(l); when it’s 2, the number of votes cast for candidate 2 would be added to K(2); and so on.

When you are defining data and data codes, it is a good idea to think about how you are going to use the data in the programs. You maybe able to save yourself coding time.

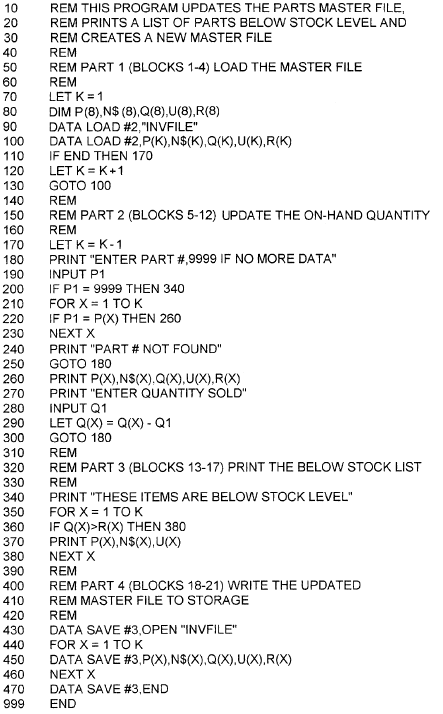

Figure 7-2.—Parts inventory flowchart and program.

Figure 7-2 cont’d.—Parts inventory flowchart and program.
