ROCKWELL TESTER

The Rockwell hardness tester, shown in figure 1-27, measures the resistance to penetration as does the Brinell tester, but instead of measuring the diameter of the impression, the Rockwell tester measures the depth, and the hardness is indicated directly on a dial attached to the machine. The more shallow the penetration, the higher the hardness number.

Two types of penetrators are used with the Rockwell testera diamond cone and a hardened steel ball. The load that forces the penetrator into the metal is called the "major load," and is measured in kilograms. The results of each penetrator and load combination are reported on separate scales, designated by letters. The penetrator, the major load, and the scale vary with the kind of metal being tested.

For hardened steels, the diamond penetrator is used, the major load is 150 kilograms, and the hardness is read on the C scale. When this reading is recorded, the letter C must precede the number indicated by the pointer. The C-scale setup is used for testing metals ranging in hardness from C-20 to the hardest steel (usually about C-70). If the metal is softer than C-20, the B-scale setup is used. With this setup, the 1/16-inch ball is used as a penetrator, the major load is 100 kilograms, and the hardness is read on the B scale.

In addition to the C and B scales, there are other setups for special testing. The scales, penetrators, major loads, and dial numbers are listed in table 1-4. The dial

Table 1-4.-Standard Rockwell Hardness Scales

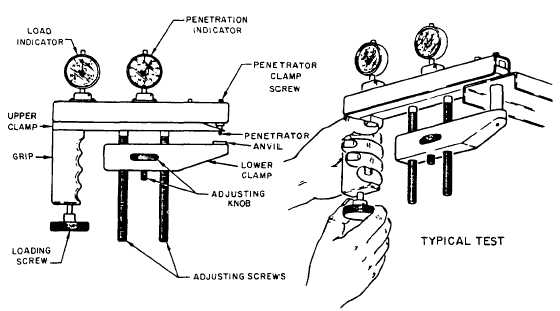

Figure 1-28.-Riehle portable hardness tester.

numbers in the outer circle are black, and the inner numbers are red.

The Rockwell tester is equipped with a weight pan, and two weights are supplied with the machine. One weight is marked in red. The other weight is marked in black. With no weight in the weight pan, the machine applies a major load of 60 kilograms. If the scale setup calls for a 100-kilogram load, the red weight is placed in the pan. For a 150-kilogram load, the black weight is added to the red weight. The black weight is always used in conjunction with the red weight; it is never used alone. Practically all testing is done with either the B-scale setup or the C-scale setup. For these scales, the colors may be used as a guide in selecting the weight (or weights) and in reading the dial. For the B-scale test, use the red weight and read the red numbers. For a C-scale test, add the black weight to the red weight and read the black numbers.

In setting up the Rockwell machine, use the diamond penetrator for testing materials that are known to be hard. If in doubt, try the diamond, since the steel ball may be deformed if used for testing hard materials. If the metal tests below C-22, then change to the steel ball.

Use the steel ball for all soft materials-those testing less than B-100. Should an overlap occur at the top of  the B scale and the bottom of the C scale, use the C-scale setup.

Before the major load is applied, the test specimen must be securely locked in place to prevent slipping and to properly seat the anvil and penetrator. To do this, a load of 10 kilograms is applied before the lever is tripped. This preliminary load is called the "minor load." The minor load is 10 kilograms regardless of the scale setup. When the machine is set up properly, it auto-matically applies the 10-kilogram load.

The metal to be tested in the Rockwell tester must be ground smooth on two opposite sides and be free of scratches and foreign matter. The surface should be perpendicular to the axis of penetration, and the two opposite ground surfaces should be parallel. If the specimen is tapered, the amount of error will depend on the taper. A curved surface will also cause a slight error in the hardness test. The amount of error depends on the curvaturethe smaller the radius of curvature, the greater the error. To eliminate such error, a small flat should be ground on the curved surface if possible.
